Media

Cabin Filter Media

  • Cabin air filter is used in automobile car for protecting the driver
  • Structure : PET thermal bond / PP Melt blown (= 2 Layer)
TYPE STRUCTURE Weight(gsm) Efficiency(%) Resistance(Pa)
Particle Filter
(=Laminated Media)		 PET Thermal Bond (70gsm) /
PP Melt blown (15gsm)		 85gsm ± 15% 50% 6.0Pa
PET Spun Bond (15gsm) / PP Melt blown (15gsm) 30gsm ± 15% 50% 6.0Pa
PET Thermal Bond (70gsm) /
PP Melt blown (15gsm)		 85gsm ± 15% 65% 8.0Pa
PET Thermal Bond (70gsm) /
PP Melt blown (20gsm)		 90gsm ± 15% 85% 10.0Pa
PET Spun Bond (15gsm) /
PP Melt blown (20gsm)		 35gsm ± 15% 85% 10.0Pa

·Measurement Instrument:TSI 8130 ·Air Flow Rate:32LPM ·Particle Size:0.3 micron ·Test Particle:NaCl

Air Filtration Media

  • Filtrates over 99.97% of very small(0.3㎛) particles in the air
  • Product for H-10~14 follow EN-1822
  • Eco-product : replacement of glass fiber filter
Filter grade MB Weight (g/㎡) Air Permeability (㎤/㎠/sec) Standard efficiency
H-10 20 > 85% < 8 PA
H-11 20 > 95% < 12PA
H-12 20 > 99.5% < 20PA
H-13 30 > 99.95% < 28PA
H-14 50 > 99.99% < 60PA
  • Measurement Instrument : TSI 8130
  • Air Flow Rate : 32 LPM
  • Particle Size : 0.3 ㎛
  • Test Particle : NaCl or DOP

Aqua Filtration Media

Filter grade MB Weight (g/㎡) Air Permeability (㎤/㎠/sec) Standard efficiency
1㎛ 120 ↑ 0.1 Calender
2㎛ 120 ↑ 0.1
3㎛ 60 ↑ 0.7
4㎛ 40 ↑ 1.0
6㎛ 30 ↑ 5.0 Un-Calender
6㎛ 60 ↑ 6.0
10㎛ 55 ↑ 10
20㎛ 50 ↑ 28
35㎛ 75 ↑ 40
80㎛ 60 ↑ 128
  • Measurement Instrument CFP-1200AE
  • Wetting Agent : Galwick
  • Material : 100% PP
Data Sheet

Item : MF0060WC(4.5) Date : September 2017

Mechanical Properties Unit Spec
1 Manufacture Process 100% PP Melt-blown → Calendering
2 Basis of Weight GSM 60 ± 15%
3 Mean Pore Diameter ㎛ 4.5 ± 1.0
4 Width mm Max 1,530
Note) 1) Test Method of Pore Size
-         Measurement Instrument : CFP-1200AE
-         Wetting Agent : Galwick
-         Test Method : DryupWetup
Data Sheet

Item : MF0030W(6) Date : 28th September 2017

Mechanical Properties Unit Spec
1 Manufacture Process 100% PP Melt-blown
2 Basis of Weight GSM 30 ± 15%
3 Mean Pore Diameter ㎛ 6 ± 2.0
4 Width mm Max 1,530
Note) 1) Test Method of Pore Size
-         Measurement Instrument : CFP-1200AE
-         Wetting Agent : Galwick
-         Test Method : DryupWetup

Aqua Filtration Media

Removal efficiency
Test SEDI B.D.M 5㎛
Test item
(1) Removal efficiency
Test Condition
(1) Removal efficiency

a. injected dust weight : 5㎛/L
b. flow rate : 12LPM
C. test dust : ISO Medium

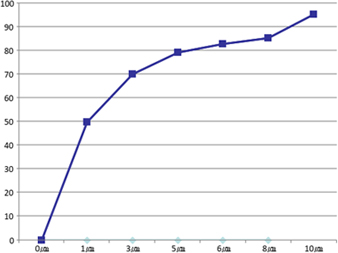

Removal efficiency
Grade 1㎛ 3㎛ 5㎛ 6㎛ 8㎛ 10㎛
SEDI MB 5㎛ 49.95% 70.17% 79.30% 82.93% 85.48% 95.31%
